The Bliss of Ignorance

21 Friday Feb 2014

Posted by Eric Hokanson in Computer Science, Learning

≈ Leave a comment

Tags

How to Learn, Improving Technical Skills

I am not god’s gift to computer science (CS).  Nor am I when it comes to programming.  There.  I said it.  Why, in a public setting, would I admit my short comings?  Would it not be better to sell my strengths?  Perhaps.  But this admission takes a lot of pressure off of me.  People can no longer expect me to be perfect.  I don’t have to live up to those expectations.

You have no responsibility to live up to what other people think you ought to accomplish. I have no responsibility to be like they expect me to be. It’s their mistake, not my failing.”
― Richard P. Feynman, Surely You’re Joking, Mr. Feynman!

This admission opens me up to new possibilities: I can learn to be better.  I can improve my technical skills if I open my mind to the idea that there are always new things to learn.  Isn’t there a Zen story about tea cups?  If the cup is already full there is no more room for more tea… no more room for new skills.  No room for more knowledge or wisdom.  I may not be god’s gift to CS but my degree was the best gift I ever earned.  It was in the earning of my degrees that I learned HOW to learn.

While the degree gave me the skills to learn, I still need people to learn from.  Admitting my CS weaknesses removes the fear of appearing ignorant because I AM ignorant.  But my ignorance is only temporary.  I used to feel intimidated approaching colleagues who are smarter than me.  Now I seek them out and ask for help.  I found that most technical people love to help you when you seek their expertise.  This was not easy at first, and I had to seek some professional help.  Professional as in reading the bio of jazz legend Pat Metheny.

Pat would purposely seek out musicians that were better than himself.  “Always be the worst guy in every band you’re in”, he once said.  Something interesting happens: your skills transform and becomes more like better guys.  I don’t know how to explain it, but I noticed something similar while playing golf.  If I am in a group where my handicap is better than everyone else, I don’t learn anything new.  Sure my ego feels good if I beat everybody, but I don’t improve; and sometimes I perform worse.  But when I am in a group where I am the highest handicapper, I seem to do better.  My focus is on keeping up.  I’m not taking risky shots.  I am more aware of my current ability and I play with in that ability.  Furthermore, I can learn from others while observing their short game, their putting, or how they cope with errant shots into the hazards.

The harder you work, the luckier you get.

Gary Player

One other technique I use to improve my technical skills comes from my experience during grad school as a TA teaching math.  The more I taught algebra or calculus to students, the better I got in those subjects and I began to UNDERSTAND, profoundly understand many of the concepts that I just accepted at face value from my instructors and the text books.

To Teach is to Learn Twice.

Ancient Proverb

Often, If I want to learn new skill or sharpen a current skill, I will seek out opportunities to create a class and teach it.  I find this technique strengthens understanding.  It is one thing to learn a skill; yet another to learn how to explain it, in your own words, so another human being can understand this skill, too.

The sages may have been right in their claims that ignorance is bliss.  But learning new things, and teaching them to others is blisser*.

Related articles
  • What Every Computer Scientist Should Know (erichokanson.me)
  • Self-education and Deep Learning (enterpriseresilienceblog.typepad.com)

* Yeah, I know its not a word.  I am currently working to improve my grammar and vocabulary.

ESET CrackMe 2013 Challenge Solved!

18 Tuesday Feb 2014

Posted by Eric Hokanson in Cyber Security Research, Malware RE

≈ Leave a comment

Tags

ESET ChallengeME 2013, ESET CrackMe 2013 Challenge, Malware Analysis, Malware Reverse Engineering

my continuing adventures in reversing the eset 2013 crackme challenge…

In my last post, we found all the Easter eggs and set off looking for the solution to unlock this puzzle.  This is a challenge from an anti-malware company, so there should a “malicious-like” component to this puzzle and started examining other threads that were spawned before the WinMain function that displays the textboxes began.  We did find an interesting path, a path that led us to the process injection of Window’s userinit.exe.  That was our “malicious-like” behavior and when we traced the code to the CreateRemoteThread call:

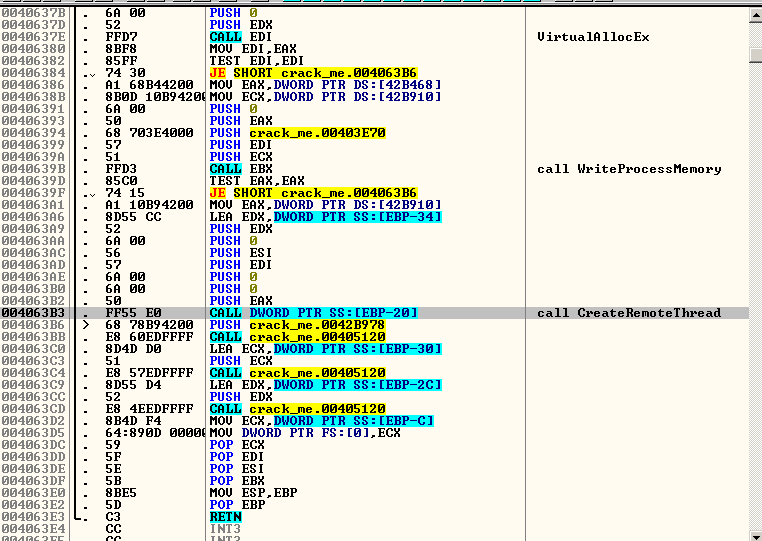

Call_to_createRemoteThread

And stepped over that call (F8), we could observe our CrackMe code launching the newly injected userinit process:

userinit_in_task_mgruserinit_in_procmon

Unfortunately, the process goes immediately into a suspended state, which prevents OllyDbg from attaching to it.  After several failed attempts of trying to find a solution, I posed the question to the community for some help.  My thanks to the many members Reverse Engineering and Malware Group on LinkedIn for their suggestions.  The solution that worked was submitted by Mr. Mahmoudnia — he found another person’s solution to this ESET challenge.  The solution is rather clever.  Before we hit the second call to WriteProcessMemory:

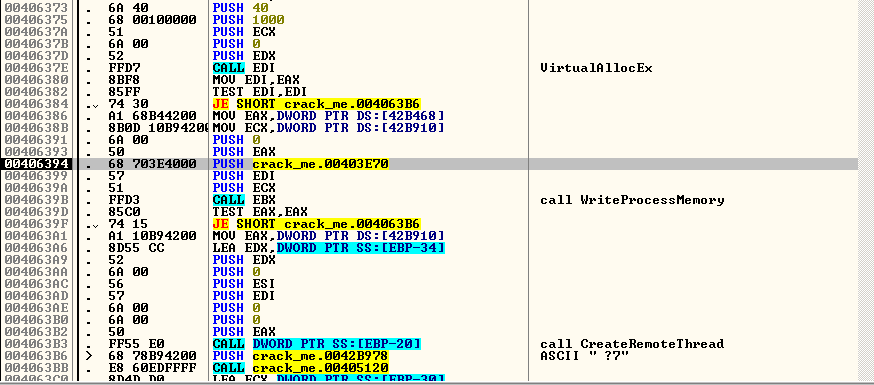

before_2nd_call_to_WriteProcessMemory_0x403E70

Which is going to write the code at location 0x403E70 into userinit’s process space at 0xA0000.  We want to go to 0x403E70 and change the function prologue from “PUSH EBP” and “MOV EBP, ESP” to the opcode “EB FE”:

at_0x403E70

In Olly, right-click on the “PUSH EBP” instruction, select binary, then edit and uncheck the “keep size” box; now you can change the opcode to the value “EB FE”:

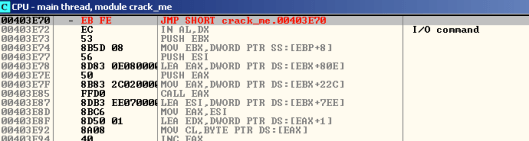

at_0x403E70_changed_to_EBFE

The opcode “EB FE” creates an infinite jump to the start of this function, i.e. to address 0x403E70.  Now we can step over the “WriteProcessMemoryCall” and proceed to step to the “CreateRemoteThread” call.  Now hit F8 to step over CreateRemoteThread and stay at location 0x4063B6:

step_over_call_to_CreateRemoteThread

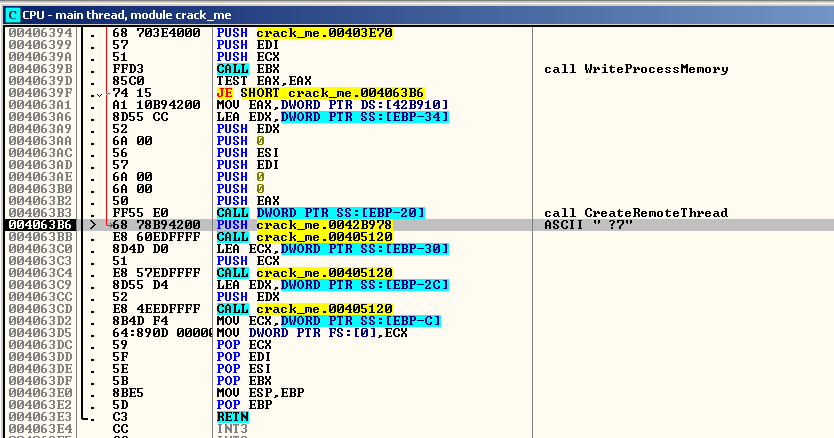

Next, open a second OllyDbg instance, go to File -> Attach and scroll down the list of process until you find userinit.exe and click the “Attach” button:

attaching_to_userinit

Once attached and in the CPU window hit CTL-G and go to address 0xA0000 and change the “EB FE” back to the “PUSH EBP” and “MOV EBP, ESP” function prologue and set a break point.  This may take several attempts.  What consistently worked for me was to go to the theads window (the blue T button) and check to see if my thread was suspended.  If it was, I right clicked on the thread and selected “Resume”, then I hit F9 (Run).  If the RE gods are smiling upon us, we will hit the BP:

attached_to_userinit_goto_A0000

To see what the above routine does, I am going to single-step through this code line-by-line:

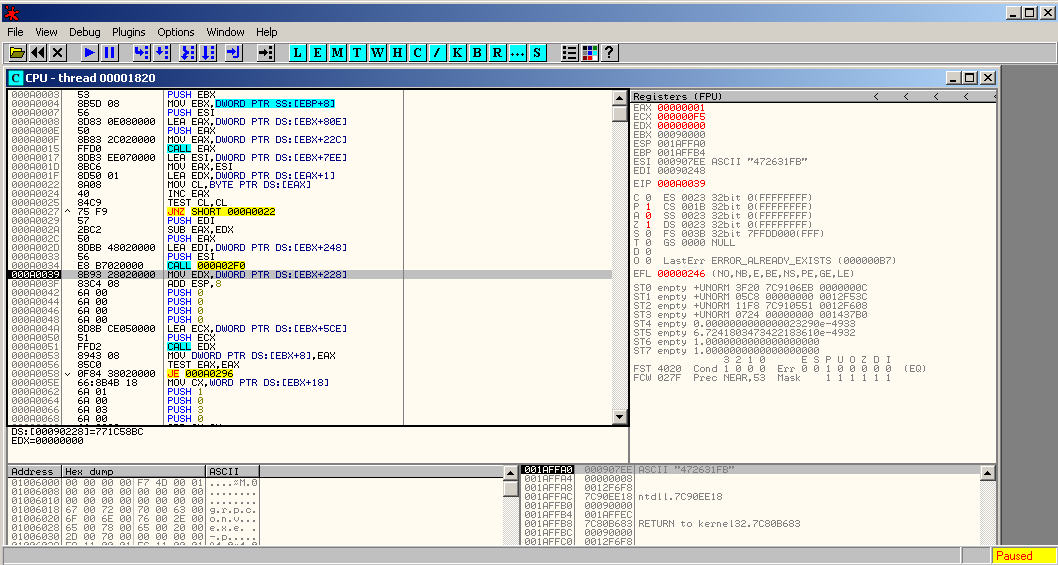

in_0xA0000_after_keygen_func

A little ways down, there is a call to a function at 0xA02F0.  I stepped inside that function and determined that this was some kind of key generation function.  Observe that ESI was set to the ASCII string “472631FB”.  Continuing on:

in_0xA0000_setting_up_Http_wget_over_port_1F90=8080

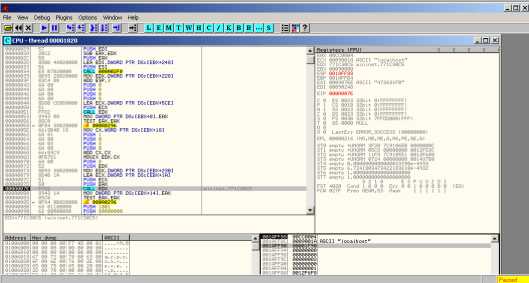

In the above chunk of code, we are making a call to a function in wininet.dll,  I used DLL Export Viewer to resolve the symbol name.  This is setting up a http network connection to localhost on port (highlighted as 0x1F90 in the stack window) 8080.  In my last post, we observed a wget POST call posting an index.php.  Continuing on, we can observe that this section of code is setting up all the parameters for an HttpOpenRequest call:

in_0xA0000_setting_up_HttpOpenRequest_index_php

Again, I fired up FakeNet and stepped over the call:

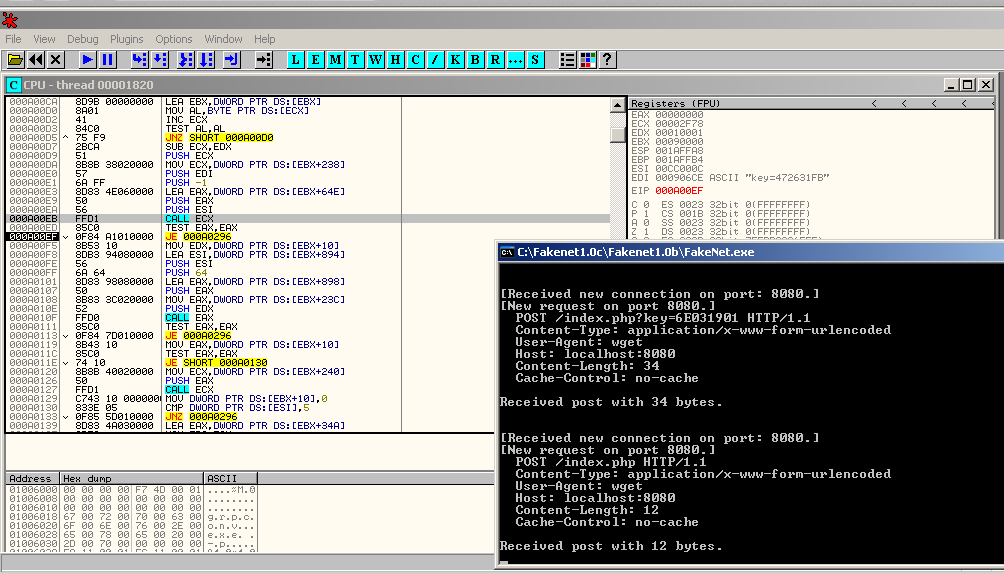

in_0xA0000_sends_index_php_over_port_8080

The wget POST with index.php is supposed to receive data but as you can clearly see, we don’t because EAX is set to 0.  The next instruction will test EAX and since it is 0, we will jump all the way down to 0xA0296.  At that location, there is code to terminate our thread.  I don’t want to end just yet.  There is an awful lot of code real estate that we are skipping and I want to see what it does.  So, I changed EAX from 0 to 1 so that the JE instruction is NOT taken in order to see what happens next:

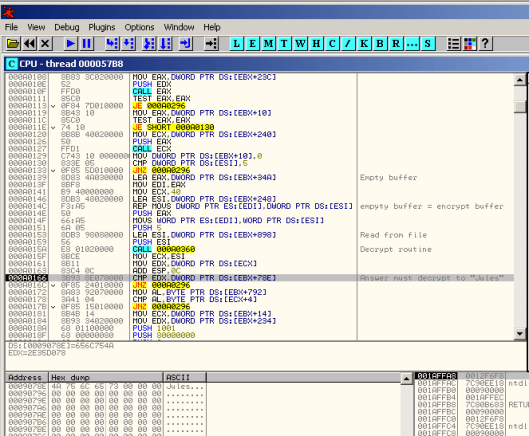

in_0xA0000_compare_to_jules

In the above screen shot, we can see that what ever we were supposed to receive from our first wget POST is supposed to decrypt to the value of “Jules” — one of the main character’s (played by Samuel L. Jackson) in the movie “Pulp Fiction”.  So our Pulp Fiction theme continues.  Since we did not receive any data, the zero flag is not set and we make that long jump to 0xA0296 again.  So I set the ZF to 1 so the JNZ instruction is not taken.  Continuing on:

in_0xA0000_second_call_with_index_php

The code continues to set up a second HttpOpenRequest call.  This time instead of passing just index.php as one of the parameters, I thought I would change it to “index.php?key=280877F8”  This was the key that was generated in our first wget POST call.  I don’t know why I thought to try this, I was just curious and assumed that since we were getting a key, that there would be a second decryption routine.  Maybe I could coax the code to decrypted what ever is going to happen next…

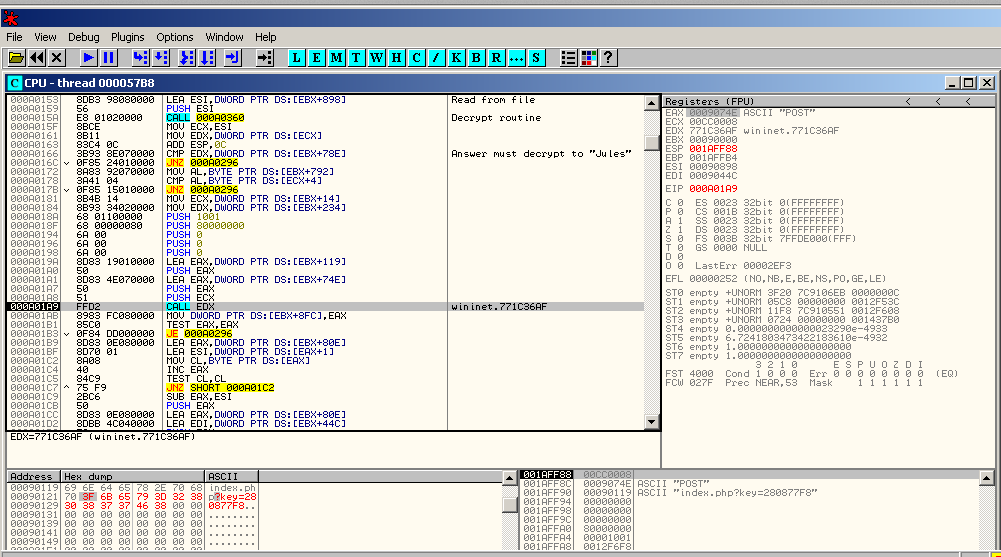

in_0xA0000_second_call_index_php2

So we make the second wget POST call and and continue on to what I believe to be is a decryption routine…

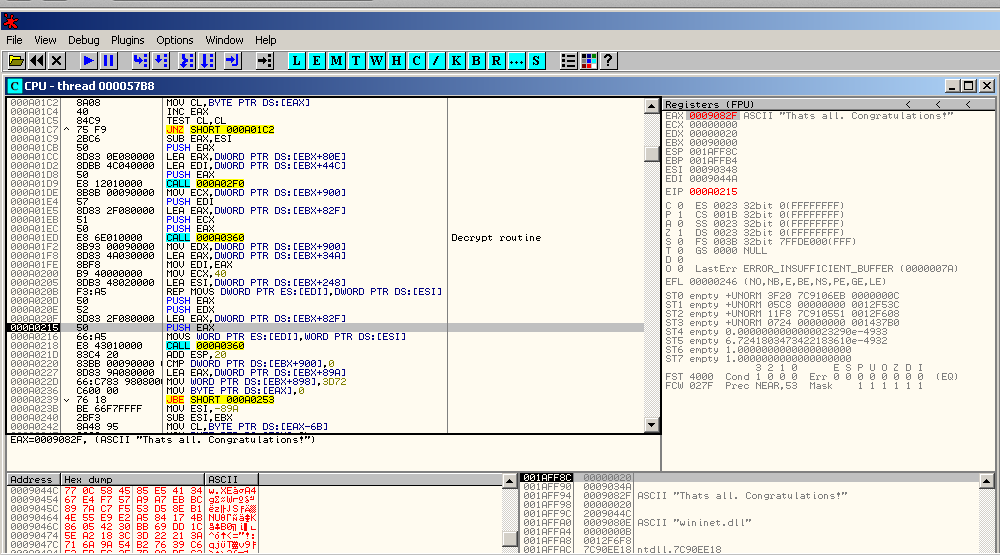

in_0xA0000_decrypted_message_thats_all_congrats

Interesting!  We did get a message: “That’s all. Congratulations!”  We must be getting close to solving this thing.  So if we continue to single-step our way through this routine, eventually we wend our way to a USER32.MessageBox call:

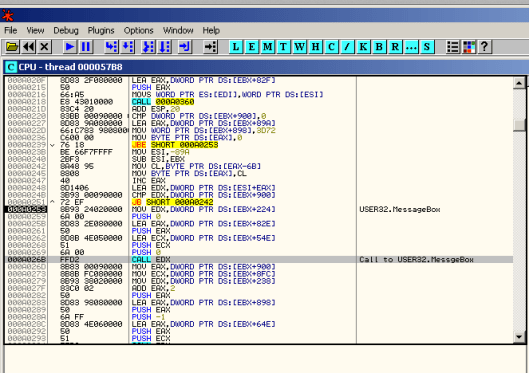

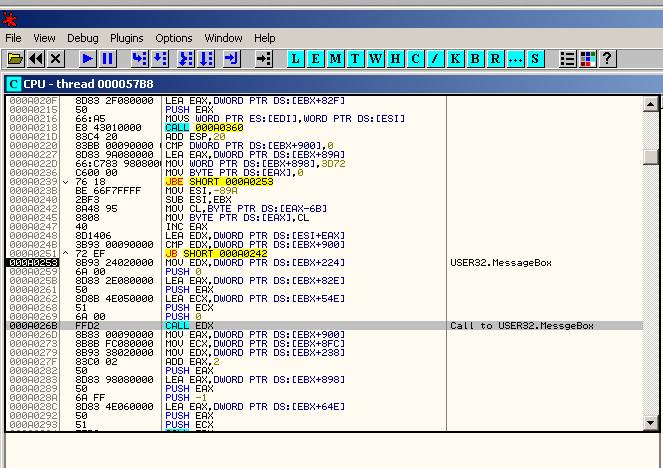

in_0xA0000_call_to_final_messagebox

Let’s step over that call and see what message we get…

I_cracked_it_the_movie_is_over

W00t w00t — we did it!

This was a very fun RE challenge.  My thanks to ESET for creating such a fun puzzle and a special thanks to Mr. Mahmoudnia and others in the Reverse Engineering and Malware Research group on LinkedIn for their help and suggestions during the times I got stuck.  I learned some new tricks like that “EB FE” trick to attach to a suspended process.  I’ll have to remember that one if I ever encounter such a sneaky maneuver by malware in the future.

ESET Challenge Part 5

02 Sunday Feb 2014

Posted by Eric Hokanson in Cyber Security Research, Malware RE

≈ 1 Comment

Tags

ESET ChallengeME 2013, ESET CrackMe Challenge, Malware Analysis, Malware Reverse Engineering

In my last post we found all the Easter Eggs.  Each egg was another quote from the movie Pulp Fiction and when we found the most famous quote from the film:

all_easter_eggs_found

we knew we found all the eggs.

At the end of our hunt, I wondered if there might be more to this challenge.  There was a lot more code that I haven’t even analyzed yet and some of the code appeared obfuscated to hide its functionality.  And this is a crack me puzzle after all.  When we first discovered what to put in each stage box:

crack_me_textboxes_work_on_vm

we were alerted that we did not “do it.”  Since this challenge has an ongoing Pulp Fiction theme, and the Stage 2 text is not a quote from the movie, this may indicate that another Pulp Fiction quote might unlock the puzzle.  But which quote is the correct quote?  There are lots of memorable quotes from the film so a brute force approach is not likely practical.  Where to begin next?

After some thinking, I realized that the CrackMe text box above didn’t appear until the start (WinMain) function ran.  But, as we have seen in my previous posts, there is a lot of activity that happens before the start function runs.  There were several threads that ran before the main function.  I decided to put a break point on CreateThread and examine the corresponding call stack.  After setting the break point and hitting F9 to run, we encountered our first break:

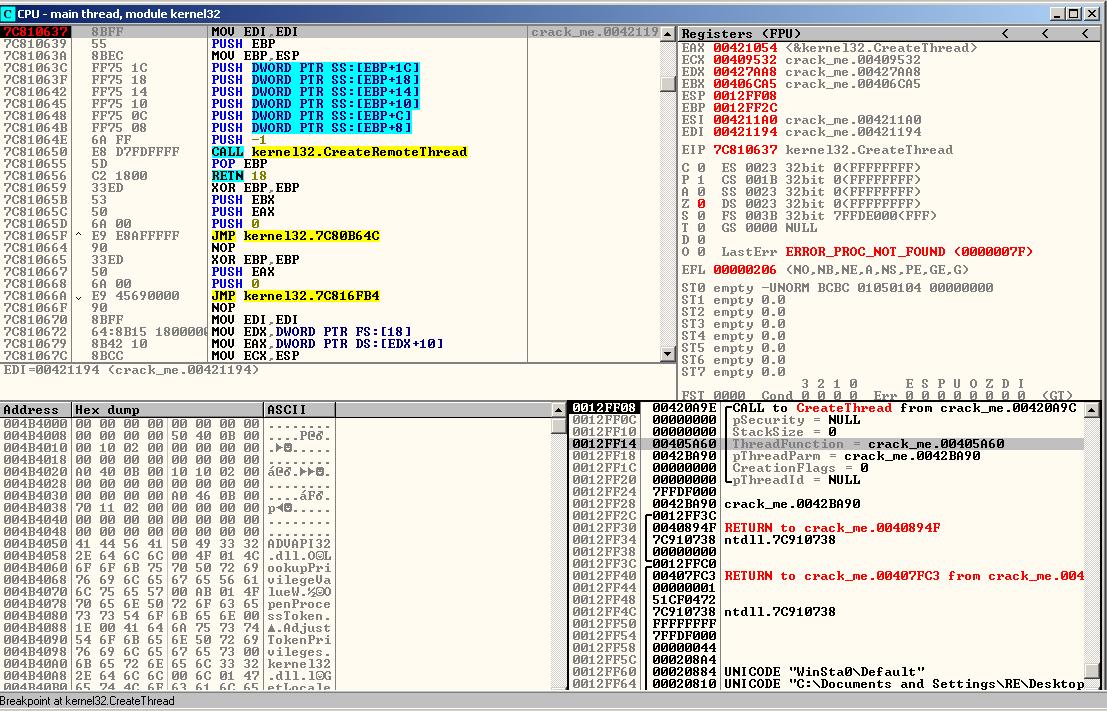

first_BP_CreateThread

in the call stack window we can see the thread function starts at 0x404A60.  If we go to that address and put a break point there, we will be able to examine what that piece of code does.  But before I do that, I hit F9 (run) again to catch the next CreateThread call:

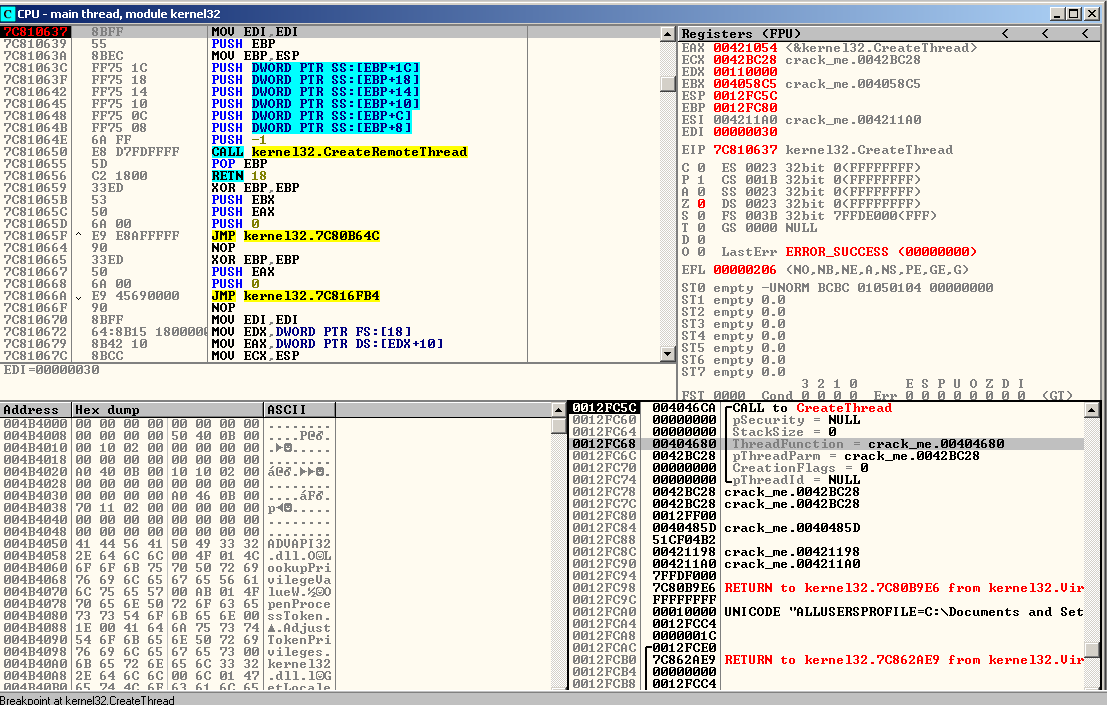

second_BP_CreateThread

this thread’s function starts at 0x404680.  If we go to that location:

threadfunct_404860_obfuscated

huh!  Olly is confused and is having a hard time analyzing this code; it thinks these are data bytes.  If we highlight all these data bytes to the nearest RETN instruction (at 0x404B1E), then right-click –> Analyze –> During next analysis, treat selection as –> Commands:

threadfunct_40486_revealed1

threadfunct_40486_revealed2

threadfunct_40486_revealed3

we can start to see that this is the part that sets up the named pipe server that we already analyzed in ESET CrackMe Challenge Part 3.  We can let this thread go; we already know what it does.

Lets return to the thread function from our CreateThread break at 0x405A60.

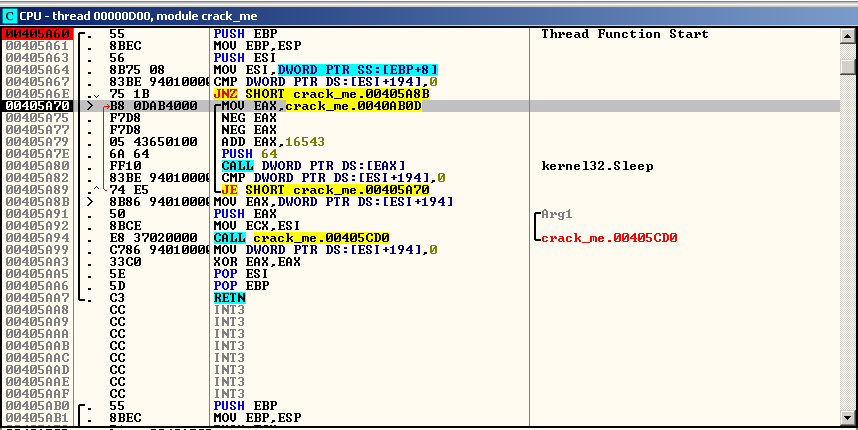

threadfunct_405A60_sleeps_until_textboxes_enabled

When this tread spawns, the process enters a sleep loop until the CrackMe text boxes are enabled and ready for input.  When that happens, the process sends us to a function at 0x405CD0.  So I put a break point at that function, let the program run (F9) and waited for a break to step into 0x405CD0.  Its a pretty big function but eventually we get to another CreateThread call:

threadfunct_405A6_takes_us_another_CreateThread_at_405D52

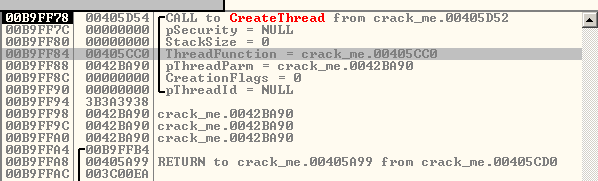

CreateThread_405D52_with_threadfunc_405CC0

this new thread has a function at 0x405CC0.  We set a break point at this new thread function to see what that does:

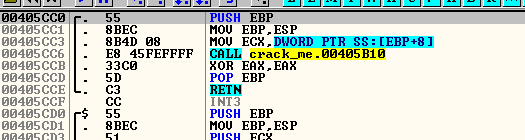

threadfunc_405CC0

it takes us to 0x405B10:

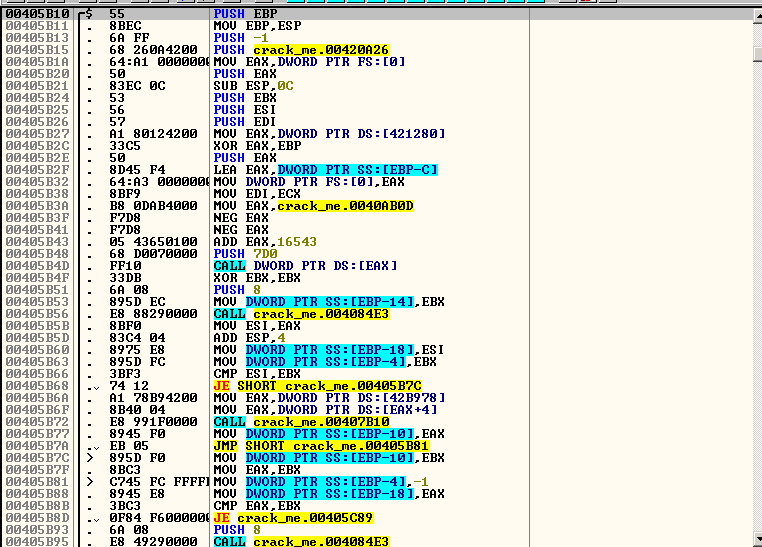

func_405B10

This is a huge function but the most interesting stuff happens here:

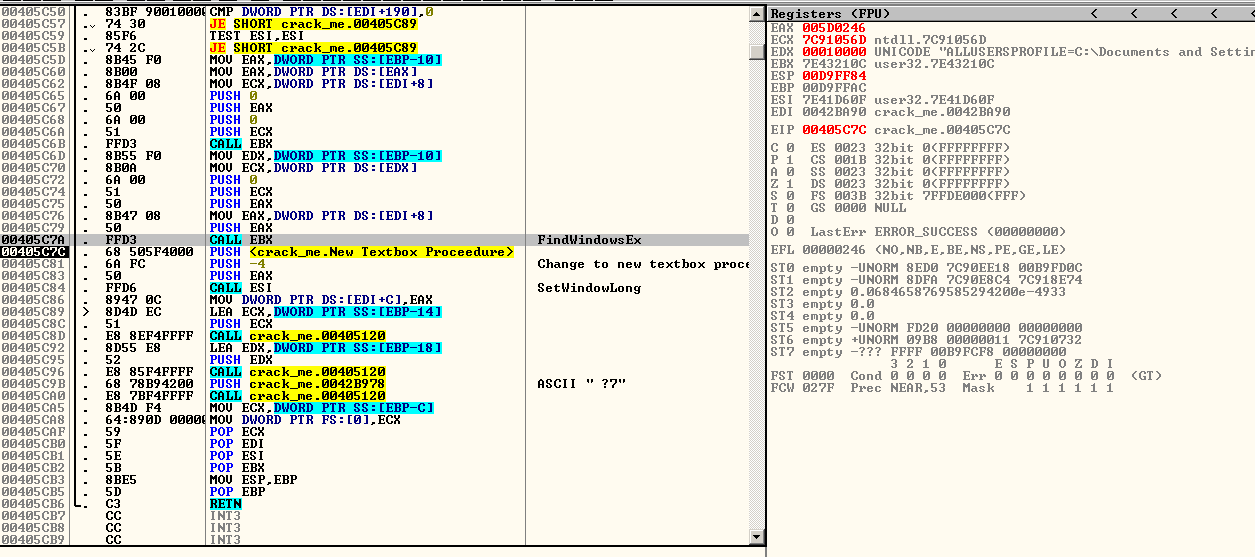

threadfunc_045CC0_with_textbox_proc_change

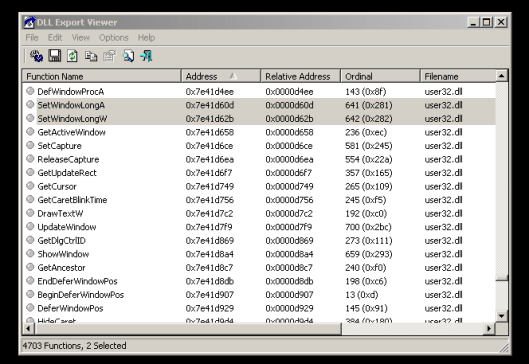

First, this function calls LoadLibrary and loads a number of user32.dll functions.  But as you can see in the Registers window, the function are not names but addresses (e.g., user32.7E41D60F).  This makes it harder for us to understand what is going on.  How can we resolve these address location calls in user32.dll to their actual function names?  There is a tool called DLL Export Viewer and it will load all of the Windows/System32 DLL’s mapping the addresses to function names.  I sorted on addresses and searched for what was being called at 0x405C7A and at 0x405C83:

DLL_Export_Viewer

In the example above, the CALL ESI is really a call to user32.7E41D60F, which is between the two addresses highlighted in the screen shot above.  So this call must be a call to a SetWindowLong function.  I did the same for the FindWindowsEx call that came before the SetWindowLong call.  After painstakingly stepping through this function and re-labeling all the user32.dll functions, I finally stumbled upon a key piece as illustrated in the following snippet of code:

Screen Shot 2014-02-01 at 5.54.04 PM

what this is doing is finding our CrackMe text box and setting the Stage 2 textbox to include this new procedure.  This means that the Stage 2 textbox will have two routines to check the input.  One will check for the “I did it!”, which will give us the “Nope. You didn’t!” dialog box, and the other checks for some other text — the correct text presumably.  We will need to set a break point at this new textbox procedure which is at:

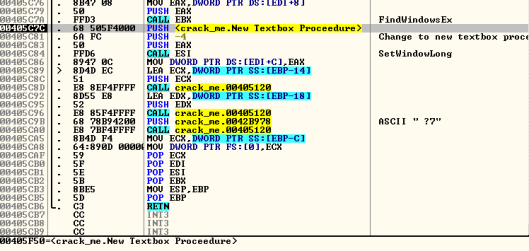

new_textbox_proc_at_405F50

0x405F50

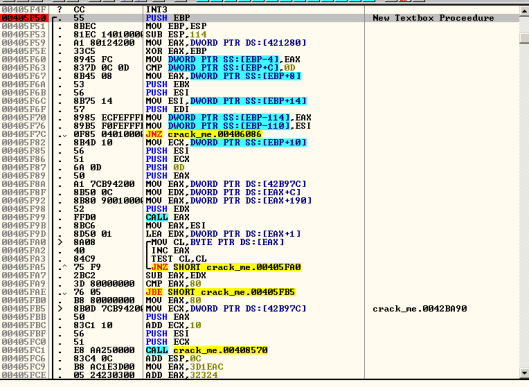

new_text_boxfunct_BP

Actually, through trial and error, I discovered that if we place a BP at 0x405F50, the CrackMe text boxes don’t finish rendering yet, and when you click on the CrackMe box, it breaks the program at 0x405F50.  I discovered that if we place a BP further down, say at 0x406023, the text box is fully rendered, and we can input text in the Stage 2 box, which will cause us to break at 0x406023.  If we do that, and place in any text other than the “I did it!”, we can trace this part of the code to try and figure out what the real message should be:

second_text_box_I_put_anything_to_hit_BP_at_406023

checks_my_imput_in_second_textbox_and_what_is_04041D0

We see that at 0x406023, ECX contains my bogus input and then a call is made to 0x4041D0.  What does that do?  If we go to 0x4041D0:

4041D0_is_obfuscated

Ack — we see that Olly hasn’t disassembled this piece correctly; it is fooled into believing that these are just data bytes.  So if we highlight all these data bytes until we get to the next RETN instruction (to 0x40429A), then right-click on the highlighted section, select Analysis –> During next analysis, treat selected as –> Commands:

4041D0_deobfuscated1

4041D0_deobfuscated2

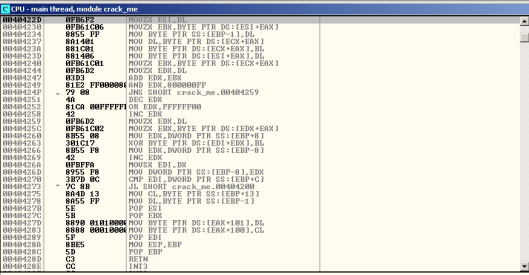

The above two screen shots show the entire routine as supposedly correct commands.  This routine is rather complicated but my gut tells me that this is some kind of encryption routine.  I am rather lazy, so instead of analyzing the above mess, I am going to try and find an easier way by observing the behavior of stepping over this routine and see what the program does.  Back to our current breaking point:

comparing_my_imput_to_some_value_at_4227EC

when we return from the 0x4041D0 encryption routine, we note that some data at 0x4227EC is being loaded into a pointer to a data segment.  It looks like the program will compare that data with my encrypted input of “sfsf”.  If we follow 0x4227EC in the dump window (highlighted in grey in the bottom left window), we can see that this data looks encrypted.  Naturally, my input is not going to match whatever is in 0x4227EC:

comparison_not_same_back_to_new_textbox_proc

hence, the program will sit here waiting for the correct input from the Stage 2 textbox.  If we let the program resume (F9), we should be able to enter some other text into Stage 2.  It is likely that the encryption routine is symmetric since that is computationally cheaper than an asymmetric scheme.  To test my theory, I entered the word “cat” and hit the check button.  When we broke again, I stepped over the encryption routine and observed the encrypted result of “cat”.  I copied this encrypted “cat”, then resumed the program again (F9) and pasted the encrypted version of cat into the Stage 2 textbox and hit the check button to return to our current break point.  When I stepped over the encrypted routine again, I got back the word “cat”; this confirms my hunch.  So, we should be able to apply the same trick to the data at 0x4227EC.  Copy and paste that encrypted data into the Stage 2 textbox and let the program run again:

cut_and_paste_value_at_4227EC

cut_and_past_value_in_second_textbox

And…

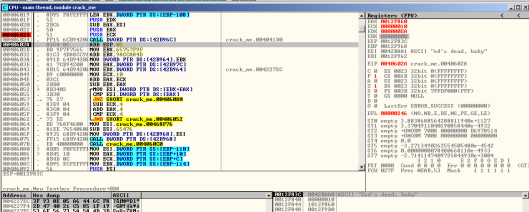

Zed's_dead_baby1

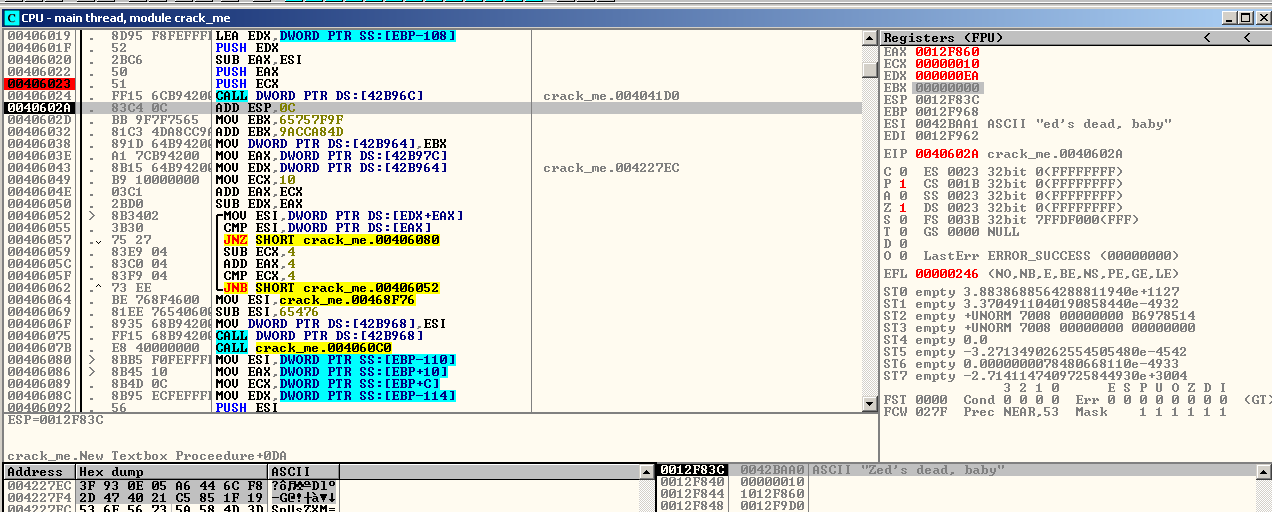

Did you see it?  In the stack window??

Zed's_dead_baby2

“Zed’s dead, baby” — not only another quote from Pulp Fiction (uttered by Bruce Willis’ character Butch), but this must be the correct quote to unlock this puzzle!

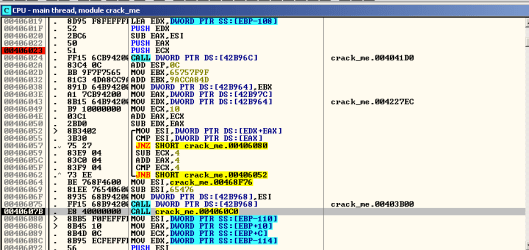

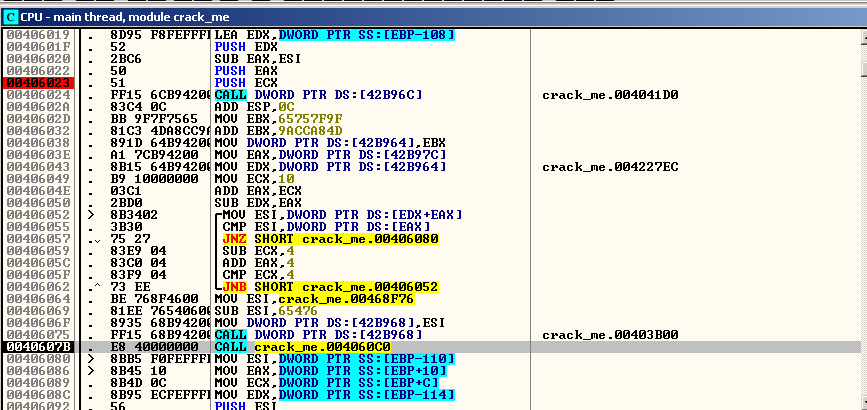

After entering the correct input, it looks like the code will now take us to:

with_correct_input_we_goto_4060C0

0x4060C0:

base64_decoder_for_userinit

0x4060C0, like the previous thread routine, is loading a number of functions but this time from kernel32.dll; and like the previous thread, it is using address locations and not the names of the functions from kernel32.dll to hide the true functionality.  So again, I used the DLL Export Viewer tool to resolve the names.  We eventually come to an interesting part of the routine as observed in the above screen shot.  Another base64 encoded string.  The string is sent to the base64 decoder function and I already decoded it as noted above: it looks like this routine is going to do something with userinit.exe.  This must be the “malware” part of the CrackMe puzzle.  No legitimate program has any business hooking into userinit.exe; this is typical malware behavior.

Userinit, according to Microsoft, “Specifies the programs that Winlogon runs when a user logs on. By default, Winlogon runs Userinit.exe, which runs logon scripts, reestablishes network connections, and then starts Explorer.exe, the Windows user interface.”  Let us see what CrackMe intends to do with userinit:

allocating_new_memory_in_userinit_at_0x90000

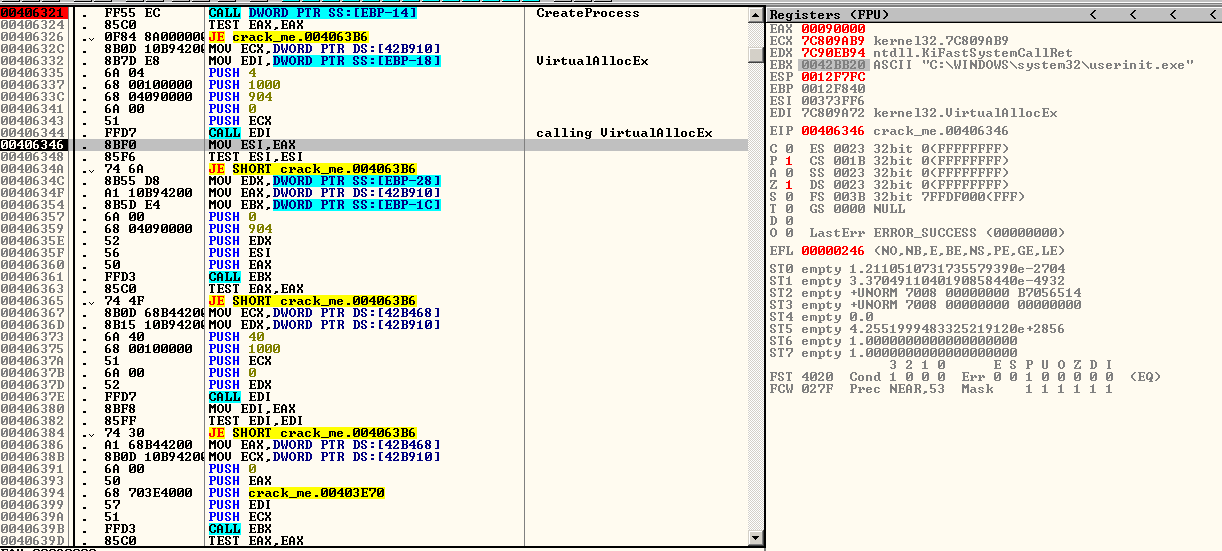

at 0x406348, we see that in EAX, new memory was allocated in userinit.exe’s process space at address 0x90000.  This is writing some sort of data, I presume.  Then…

allocating_new_memory_in_userinit_at_0x0A0000

at 0x406380, more memory is allocated in userinit.exe’s process space at location 0xA0000.  Continuing a little further…

Call_to_createRemoteThread

we observe a call to CreateRemoteThread with EAX = 0xA0000.  So what was written at 0xA0000 must be code because CreateRemoteThread creates a thread that runs in the virtual address space of another process.

Before stepping over the CreateRemoteThread, I fired up FakeNet and ProcMon tools to capture any events that might happen:

after_stepping_over_CreateRemoteThread_a_post_index_php

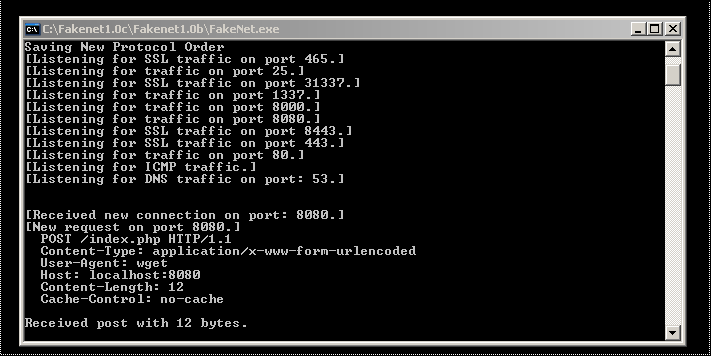

this new process used wget to post an index.php on port 8080 localhost.  That is interesting, but here is where my trail (or thread) goes cold.  When I look for this process, I can not find it.  I don’t see this new process spawned by CreateRemoteThread listed in the active processes in OllyDbg even though it is clearly running somewhere:

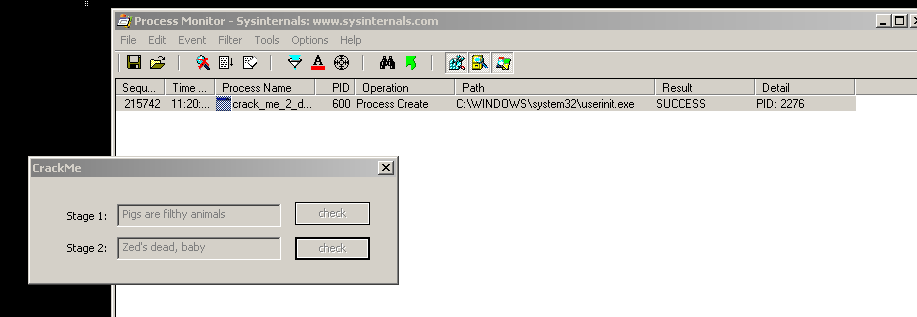

crack_me_launches_userinit_and_is_running

There is a PID of 2276 but I don’t even see it in Process Explorer or the task manager.  This leaves me somewhat stumped as to how I can attach to this new process.  If I can find it, and attach, then I might be able to figure out what to do next.  I invite the community to share any hints or tips as to how I might attempt to locate this process.  I am so close to solving this thing — I can feel it.  I would expect that the patched userinit is supposed to generate my next dialog box after entering the correct quote, “Zed’s dead, baby” in the Stage 2 textbox.  But it must be missing a key piece to finish the job.  What was sent to localhost?

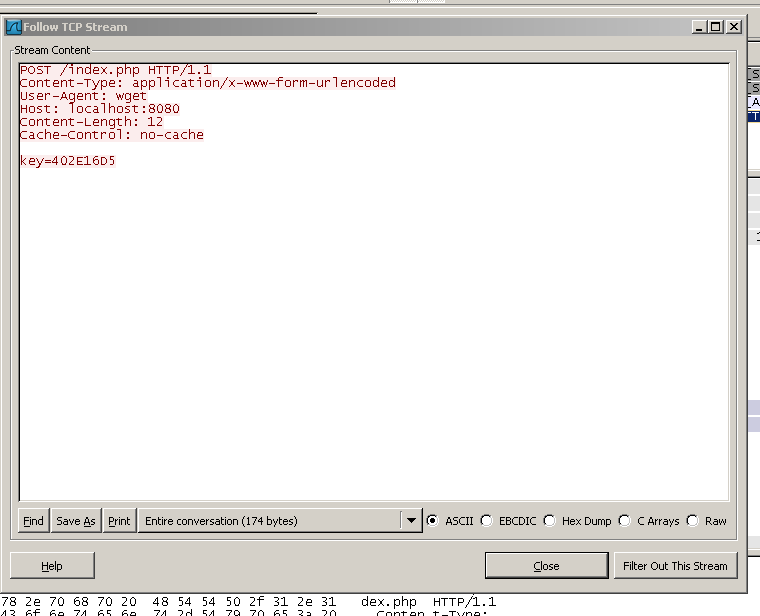

index_php_post

it looks like there is a key of some kind.  My guess is index.php must somehow use the code injected into userinit.exe at 0xA0000 to decrypt the data at 0x90000 (???) but I won’t know this for sure until I figure out how to find and attach to the process spawned at 0xA0000.

I will keep playing with it to see if I can figure it out.  If I come up with anything new, I will be sure to post those results here.  Stay tuned…

EDIT TO ADD February 18, 2014:  After several debug sessions, I did manage to find the userinit process in Windows Task Manager and Sysinternal’s Process Explorer.

userinit_in_task_mgruserinit_in_procmon

However, I still can not locate the userinit thread in OllyDbg to attach to it.  The problem seems to be that when the thread is spawned, it immediately goes into a suspended state, which would explain why I can’t find it in Olly’s active process window.  Hmmmmmm….  I will keep trying…
